Product Description
Uflex Complete Rotary System is ideal for tasks that formerly needed steering, steering cables, and a helm. Uflex has now merged all three into a single, easy-to-assemble unit! It comes with everything you need to replace the steering on single-station boats with a single power-assisted sterndrive or inboard engine. The Rotech22FC is the first system to combine hydraulic steering with a front mount cable EC Tiller to steer up to 150HP outboard motors. It offers safe driving control at high speeds and minimizes helmsman stress while navigating at low speeds.
Key features:
-
Rotary Steering Kit with a 22-foot cable Cable
-

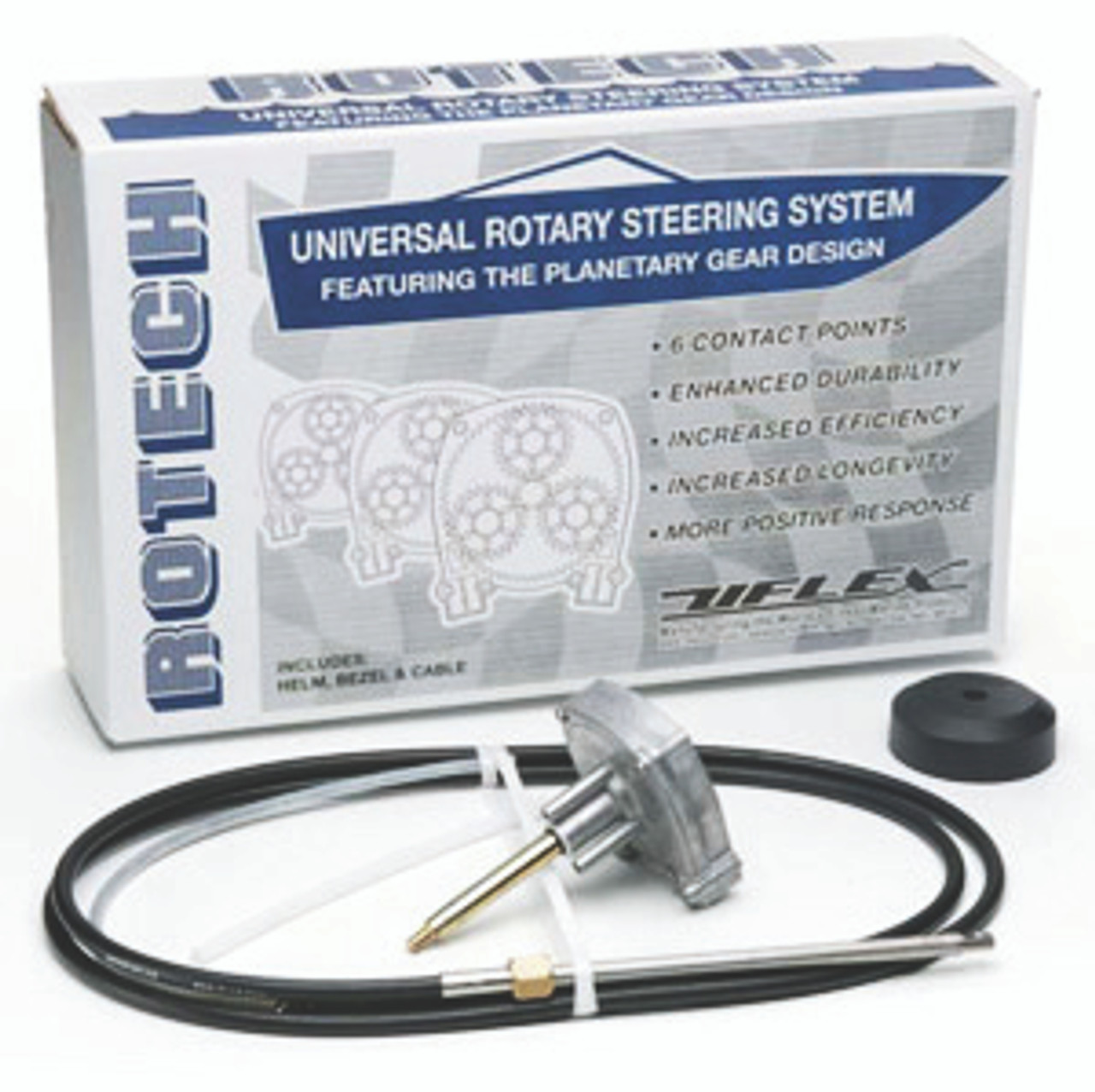

T71FC helm, X34 90 degree mounting bezel, and M66 22 ft. steering cable are included in the kit.
-
Installation is quick and uncomplicated.
-
The helm has a typical 3/4 in. diameter. shaft with a taper
-
Helm employs a planetary gear design that distributes engine torque evenly over three locations of the central gear, splitting and balancing system load.
-
Stainless steel is used for all cable output ends.
-
3.8 revolutions of the steering wheel lock-to-lock
-
The maximum permissible steering wheel diameter is 16 inches.
-
Not for use with boats that exceed 50 mph.
-
Uflex ROTECH22 has been replaced.
Specifications:
-
Manufacturer Part Number: ROTECH22FC
-
Brand: Uflex USA
-
T71FC Helm: 4 7/8" D
-
Behind Dash Front x 5 15/16" x 5 3/8" (W x H)
-
Tapered Shaft 3/4"
-
Length: 10 Feet Hose
-
TypeMechanical Steering Kits
Convenient kit, especially suitable as replacement steering, that includes helm, bezel and cable. The cable is available in 1-ft increments from 8 to 20 feet (specify cable length when ordering). Steering wheel not included. (XX=length)
This product replaces:
- 7-1122, 702755020097, RO22, ROTECH22FC, ROTECH-22, 216-ROTECH22FC
